OUR SYSTEMS
Glass Balustrades
316 and 2205 stainless steel. AS 1288 compliant. Frameless and semi-frameless options.
Glass balustrades offer unobstructed views, wind protection and a sleek modern aesthetic for both commercial and residential properties. Available in frameless and semi-frameless options, with 10mm to 15mm toughened glass in clear, opaque or coloured finishes. All posts and fittings manufactured from 316 or 2205 grade stainless steel to AS 1288 compliance requirements

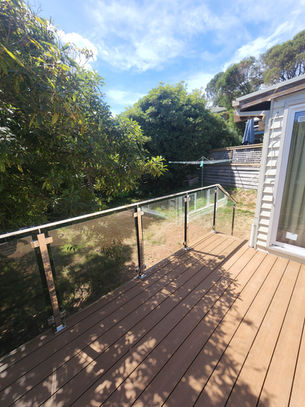

Semi Frameless Glass Balustrade
Round D Clamp Balustrade
Code: RDCB
Materials:
Design:
- 50.8 x 1.6mm 316 Stainless Tube top rail & posts
- 50mm Rail converter at top of posts
- 100 x 6 Disc Foot Plate & Cover plate
- 2205 Stainless Glass D Clamps
- 10mm Toughened Clear Glass
- Posts at Max 1250mm centres
- 4 x Fixings per base plate
- Top rail height to be 1050mm AFFL
- 4 x D Clamps per glass panel

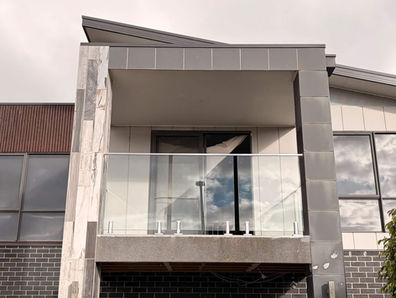

Frameless Glass Balustrade

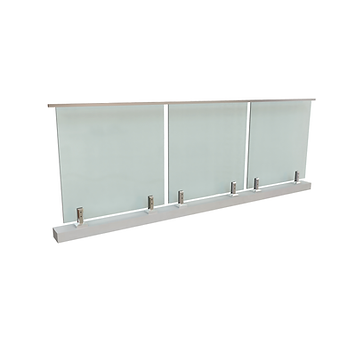

Mini Post - Top Rail
Code: MPTR
Materials:
Design:
- 2205 Stainless Mini Posts with Cover Plates
- 15mm Toughened Clear Glass
- 21 x 30 x 1.6mm Slotted Top Rail
- Glass Panels to be Max 1200mm
- 2 x Mini Posts per glass panel
- 4 x Fixings per Mini Post
- Finished Balustrade height sits 1060mm AFFL
The Semi frameless systems use 10mm toughened clear glass with 316L stainless steel frames and D clamp fittings for a rigid, secure result. Frameless systems use 12–15mm toughened glass supported by 2205 stainless spigots — no visible frame, unobstructed views. Both options available in multiple profiles to suit your project.
Finishes Available
Satin
Satin finish offers a brushed polished consistent look, it has less gloss & shine. Polished to a No.4 finish. Not ideal for Coastal Areas, great for indoor and commercial projects. May require some cleaning maintenance.
Polished
Polished finish offers a mirror consistent look, it is high gloss & shine. Polished to a 320 - 600 Grit finish. Ideal for Coastal & higher salinity areas. Low maintenance required, little to no tea staining.
Powder Coat
We offer the Dulux Duralloy powder coat colour range as well as colourbond colours. Powder coat offers the opportunity to match existing trims as well as add an additional layer of protection.
