Commercial Handrails
DDA compliant handrail systems for builders, architects and property managers. Designed and manufactured to AS 1428.1 requirements.
Commercial handrail systems designed and manufactured to meet DDA and NCC compliance requirements. Suitable for builders, architects and property managers across Geelong, Melbourne and regional Victoria.
DDA Wall Mount Handrails
50mm Round Wall Mount
Code: R50WM
Materials:
Design:
- 50.8mm x 1.6mm 316 Stainless Tube
- 64mm Round Wall Plate with 12mm L Bracket & Cover Plate - 316 Stainless
- Wall Brackets at Max 1000mm centres
- 3 Screw Fixings per wall bracket
- Handrail sits 55mm off wall
- Handrail to sit between 865mm & 1000mm above floor level
DDA Post Mount Handrails
50mm Round Post Mount
Code: R50PM
Materials:
Design:
- 50.8mm x 1.6mm 316 Stainless Tube top rail & posts
- 50mm Rail converter at top of posts
- 100 x 6 Disc Foot Plate & Cover plate
- Posts at Max 1250mm Centres
- 4 x Fixings per base plate
- Top rail height between 865mm & 1000mm AFFL
DDA Ramp Handrails
50mm Round DDA Ramp
Code: R50DDAR
Materials:
Design:
- 50.8mm x 1.6mm 316 Stainless Tube top rail & posts
- 50mm Rail converter at top of posts
- 150 x 50 x 10mm fully welded base plate with radiused corners.
- 100 x 6mm Kick Rail
- Posts at Max 1250mm centres
- 2 x Fixings per base plate
- Top rail height between 865mm & 1000mm AFFL
- Bottom of kick rail is 65mm AFFL
DDA Handrail Terminations
180 Degree Termination
Code: 180T
Materials:
Design:
- 180 degree bend as per AS: 1528.3 standard
- Slightly Domed Knock in end cap
- 300mm Extension from floor level
- Fully Welded & Polished 180 degree elbow
- Knock in cap with fusion weld underneath to conceal

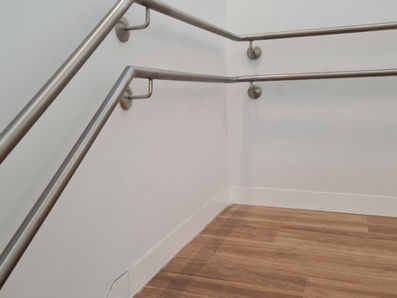

DDA Wall Mount Double Handrails
50mm Round Wall Mount Double
Code: R50DWM
Materials:
Design:
- 50.8mm x 1.6mm 316 Stainless Tube
- 64mm Round Wall Plate with 12mm L Bracket & Cover Plate - 316 Stainless
- Wall Brackets at Max 1000mm centres
- 3 Screw Fixings per wall bracket
- Handrail sits 55mm off wall
- Top rail to sit between 865mm & 1000mm above floor level
- Second rail to sit 200mm below top rail
DDA Post Mount Double Handrails
50mm Round Post Mount Double
- Round Post
Code: R50PMD - RP
Materials:
- 50.8mm x 1.6mm 316 Stainless Tube top rail & posts
- Fully welded offset L shaped brackets
- 100 x 6 Disc Foot Plate & Cover plate
Design:
- Posts at Max 1250mm Centres & to match handrail height with end cap
- 4 x Fixings per base plate
- Top rail height between 865mm & 1000mm AFFL
- Second rail to sit 200mm Below top rail
- Handrail to sit 55mm off posts
DDA Post Mount Horizontal Double Handrails
50mm Round Post Mount Horizontal Double - Round Post
Code: R50PMHD - RP
Materials:
- 50.8mm x 1.6mm 316 Stainless Tube top rail & posts
- Fully welded offset L shaped brackets
- 100 x 6 Disc Foot Plate & Cover plate
Design:
- Posts at Max 1250mm Centres & to match handrail height with end cap
- 4 x Fixings per base plate
- Top rail height between 865mm & 1000mm AFFL
- Top rails at 210mm centres
- Handrail to sit 55mm off posts
DDA Ramp Double Handrails
50mm Round Ramp Double
- Round Post
Code: R50DDARD - RP
Materials:
Design:
- 50.8mm x 1.6mm 316 Stainless Tube top rail & posts
- Fully welded offset L shaped brackets
- 150 x 50 x 10mm thick fully welded base plate with radiused corners
- 100 x 6mm Kick Rail
- Posts at Max 1250mm Centres & to match handrail height with end cap
- 2 x Fixings per base plate
- Top rail height between 865mm & 1000mm AFFL
- Second rail to sit 200mm Below top rail
- Bottom of kick rail to be 65mm AFFL
- Handrail to sit 55mm off posts
All DDA handrail systems are designed and manufactured to AS 1428.1:2021 requirements. Ideal for schools, childcare centres and public use spaces. Features 180 degree elbows or floor returns and a wheelchair kick rail when used on ramps.
Finishes Available
Satin
Satin finish offers a brushed polished consistent look, it has less gloss & shine. Polished to a No.4 finish. Not ideal for Coastal Areas, great for indoor and commercial projects. May require some cleaning maintenance.
Polished
Polished finish offers a mirror consistent look, it is high gloss & shine. Polished to a 320 - 600 Grit finish. Ideal for Coastal & higher salinity areas. Low maintenance required, little to no tea staining.
Powder Coat
We offer the Dulux Duralloy powder coat colour range as well as colourbond colours. Powder coat offers the opportunity to match existing trims as well as add an additional layer of protection.
